C. What does the new lithium battery handling label look like and when is it required?
C--在IATA DGR 规定中，新的锂电池操作标签是什么样的？什么情况下需要使用？

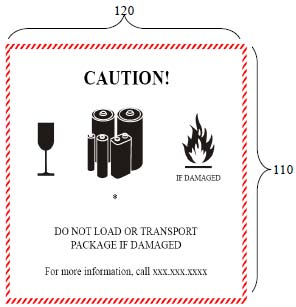

The new lithium battery handling label is required as specified in the additional requirements of Section II of packing instructions 965, 966, 967, 968, 969 and 970. It is also required as specified in the additional requirements of Section IB of packing instruction 965 and 968 in addition to the Class 9 label. The new label is as shown in Figure 7.4.H of the IATA Dangerous Goods Regulations. The border of the label must have red diagonal hatchings with text and symbols in black on a contrasting background. The lithium battery handling label may be printed directly on the outer packaging provided that there is sufficient contrast between the elements of the lithium battery label and the colour of the packaging material. The minimum dimensions are 120 mm x 110 mm
包装说明965、966、967、968、969 和970 第II 节的附加规定中明确了需要粘贴新的锂电池操作标签的情况。该标签同时还和第九类杂项标签一起用于PI965 和PI968 的第I 节的IB 小节。新标签见DGR 图7.4H。标签的边必须有红色斜阴影线，符号和文字使用与背景形成鲜明对比的黑色。如果标签和包装材料的颜色对比足够明显，锂电池操作标签也可以直接印刷在外包装上。
